A simple model of CoV2 transmission

I created this simple model to clarify – in my own mind –the selective pressures on viruses such as CoV-2 that we can expect in various settings. I’m considering three strains: firstly, an “ancestral” strain with an intermediate growth rate and a moderate incubation period; secondly, a very aggressive mutant that has a short incubation period and causes the human host to emit (“shed”) a lot of virus particles very quickly; and, thirdly, a mild mutant that has a long incubation period and causes only minor symptoms.

My conclusions are:

  1. In institutions such as boarding schools, care homes, and hospitals, the aggressive strain (red) has a competitive advantage. We can expect that strains that are transmitted within institutions will increase in virulence. We should therefore isolate patients from each other as much as possible, and be careful to prevent these strains of CoV-2 from escaping into the community by e.g. infecting doctors and nurses.
  2. In a normal community, and also in a community that is in “lock-down”, the mild strains (green) have a competitive advantage because they are shed for longer – as a result of their longer incubation periods. The probability of transmission of each is roughly proportional to the areas “under the curves”, colored below with solid blue, red and green.
  3. Over time we can expect mild strains to dominate – as they always have eventually in previous epidemics (especially after a significant number of individuals have acquired immunity).
  4. The competitive advantage of the mild strain is slightly increased by lock-down. This is because there is less chance that the sick individual infects more than one new host. If two or more hosts are infected, the more aggressive strains are favored because they release “daughter” virus particles earlier.
  5. However if lockdown completely prevents transmission, we may be left with the virulent strains that may emerge from closed communities such as hospitals.
  6. A recent study** found that the median period of CoV-2 shedding by asymptomatic patients was 19 days, five days longer than for symptomatic patients.

Here is my model:

Model of CoV-2 transmission 4.png

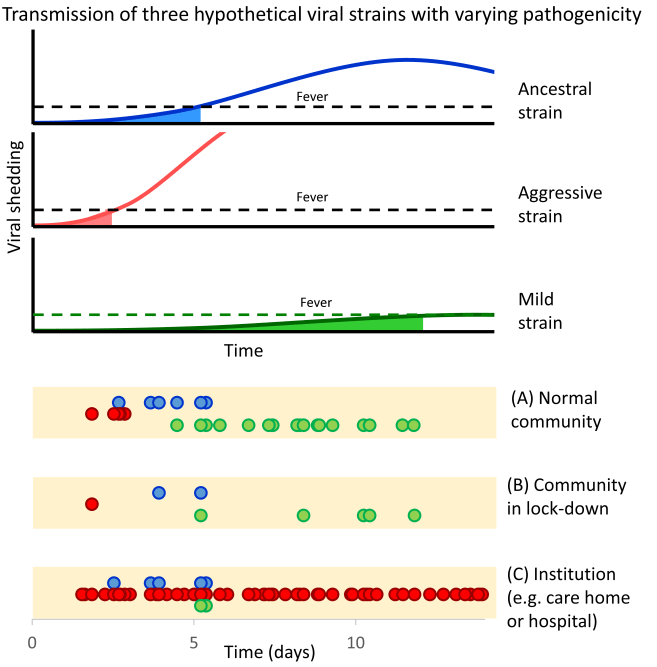

Description of the model.  At the top I’m showing how the illnesses caused by the three hypothetical strains might develop over time within their individual hosts.  The vertical axes show “shedding”, i.e. the amount of virus that the sick individual is continuously transmitting into his or her environment.  Once the sickness progresses enough to cause a fever (dotted line), I assume that the victim goes home and to bed, and no further infections take place.  (Of course they might in reality still transmit the illness to other members of their family, but for simplicity I will ignore this.)  In the three lower panels A, B and C, I’m showing the human contacts that have the potential to spread the virus.  Each dot represents an opportunity for infection to take place.  The top panel, (A), shows a community before lockdown measures are enacted, (B) shows a community once lockdown is in place, while (C) shows an institution such as a care home or hospital where several accidental contacts take place each day no matter how sick the patient becomes.  I have also shown that the blue and green strains are outcompeted by the red – bear in mind that strains can compete with each other within each patient.  The times of the contacts (dots) were defined by a random number generator, with 2 to 3 contacts per day in the normal community (A), only one contact every few days in lockdown (B) and about four contacts per day in the institution (C).

Please note that these trends are driven by differences in incubation periods (or, to be precise, differences in {incubation period – latent period}), not by the deaths of hosts in the case of the virulent strain – which happens too late.

**Long, Quan-Xin, et al. “Clinical and immunological assessment of asymptomatic SARS-CoV-2 infections.” Nature Medicine (2020): 1-5.
